Monitor/ controller per amplificatori Yamaha serie Tn, PC1N con protocollo CobraNet™

16-channel D/A Converter and Monitor/Control Unit The ACU16-C converts up to 16 channels of digital audio (48 kHz/20-bit or 24-bit) to analog using CobraNet technology, and delivers analog audio to the power amplifiers with a dynamic range of 110dB. Tn and PC-1N series amplifier settings and status can be monitored and controlled using the supplied NetworkAmp Manager software and a computer: power on/standby, attenuation, out/in levels, temperature, load impedance, and more. One ACU16-C can control up to 32 Tn and PC-1N series amplifiers. Connect a computer to any NHB32-C or ACU16-C in the network, and have full monitoring/control capability over all CobraNet-connected Tn and PC-1N series amplifiers. About CobraNet™ There is a growing need for large-scale audio systems, and with it the need for advanced networking technologies that can distribute high-quality audio quickly and reliably throughout large venues or open facilities with fully integrated control. CobraNet™ is a sophisticated technology that enables transfer of multiple audio and control channels via Ethernet cable. As an integrated system, CobraNet allows digital data to be carried up to 100 meters* from one port to another device by common CAT-5/100Base-TX cabling, or up to 2 kilometers by optical fiber. It is fast, with constant 5.33ms latency**; it is reliable, thanks to built-in redundant systems; and, with the standard cabling and connections, it is remarkably easy to use and economical. * The actual maximum length of cables may differ depending on the quality of the Ethernet equipment or the particular settings used.** Low latency mode of CobraNet™ is now supported, which enables users to choose from 5.33ms, 2.67ms and 1.33ms.

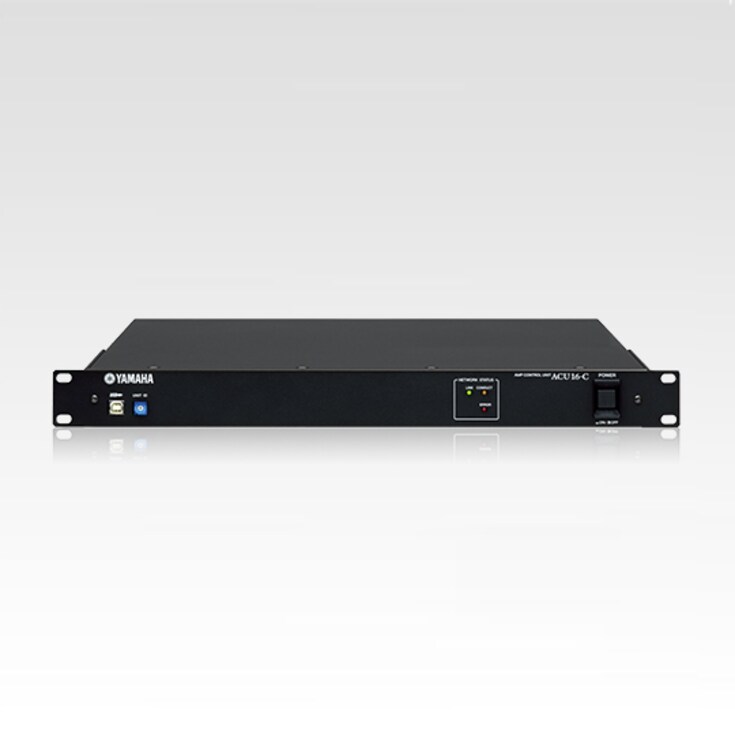

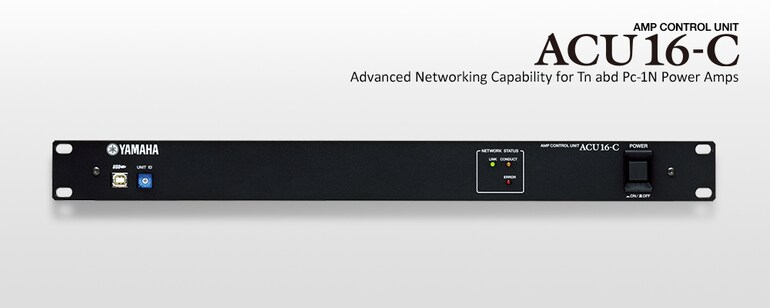

ACU16-C Amp Control Unit

Questo dispositivo di controllo consente di controllare gli amplificatori in rete da un computer e comprende il protocollo CobraNet™ per la gestione di 16 canali audio analogici.

I colori e le finiture visualizzati potrebbero differire dai colori reali dei prodotti.
