Schede digitali

Lineup

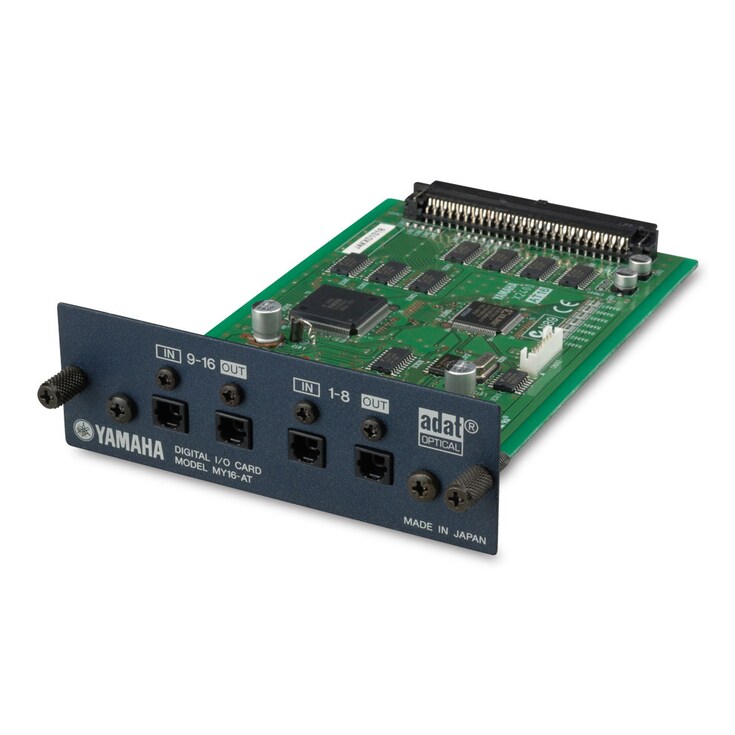

MY16-ATADAT

Scheda I/O ADAT a 16 canali

24bit resolution, 16-in/16-out ADAT interface (8-in/8-out at 96kHz)
4x Optical connectors

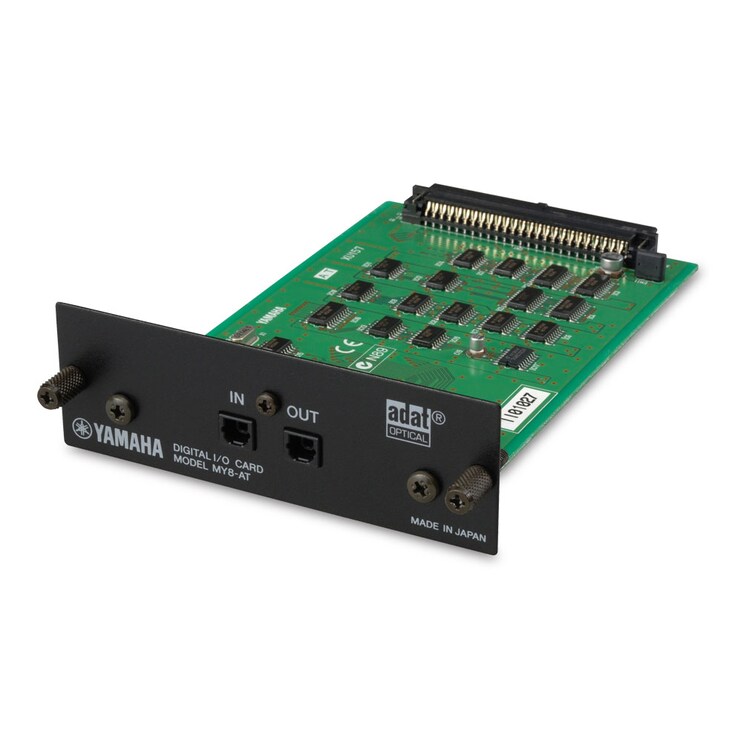

MY8-ATADAT

Scheda I/O ADAT a 8 canali

24bit resolution, 8-in/8-out ADAT interface (4-in/4-out at 96kHz)
2x Optical connectors

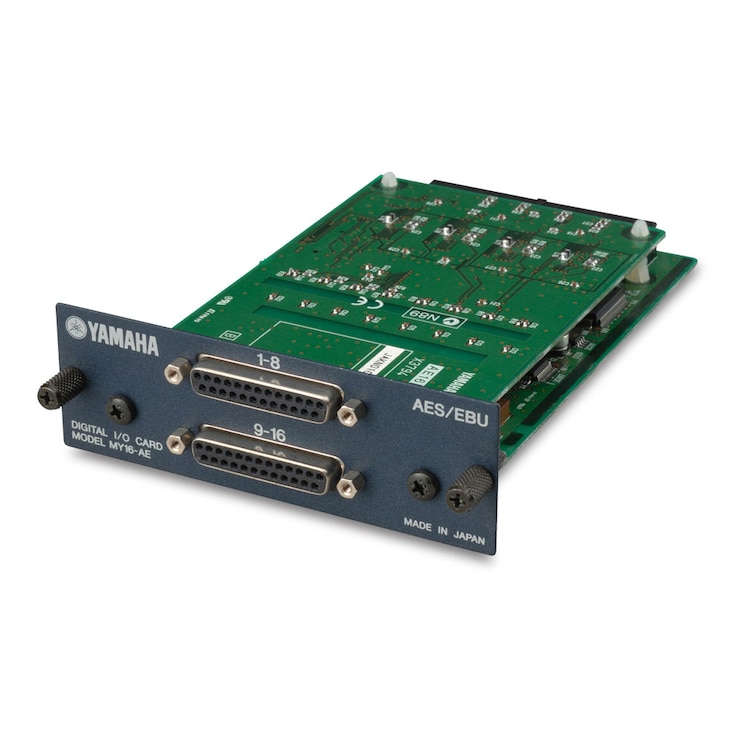

MY16-AEAES/EBU

Scheda I/O AES/EBU a 16 canali

24bit resolution, 16-in/16-out AES/EBU interface (8-in/8-out at 96kHz)
2x D-sub 25 pin connectors

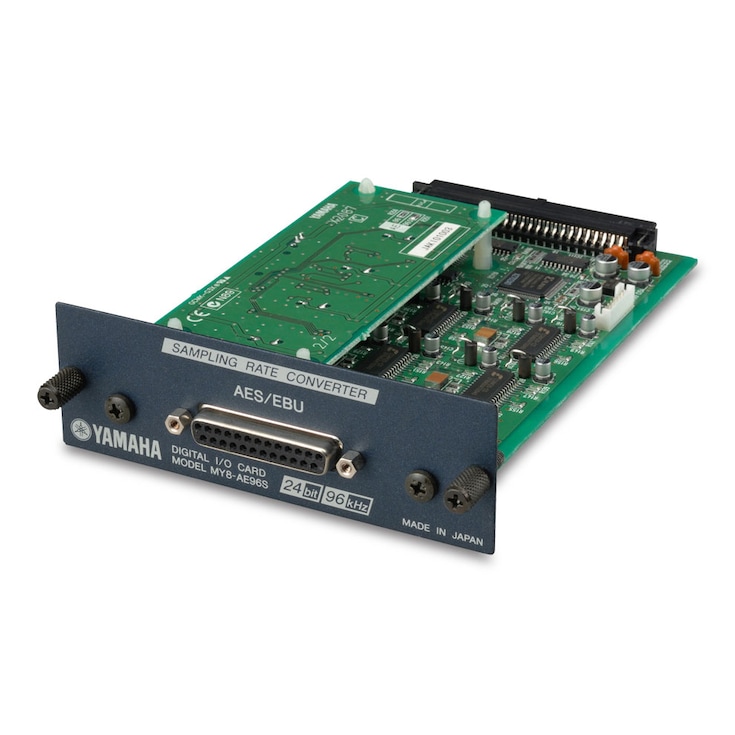

MY8-AE96SAES/EBU

Scheda I/O AES/EBU a 8 canali compatibile 96 kHz con convertitore di frequenza di campionamento

24bit resolution, 96kHz compaible 8-in/8-out AES/EBU interface
1x D-sub 25 pin connector
Equipped with a sampling rate converter at the input

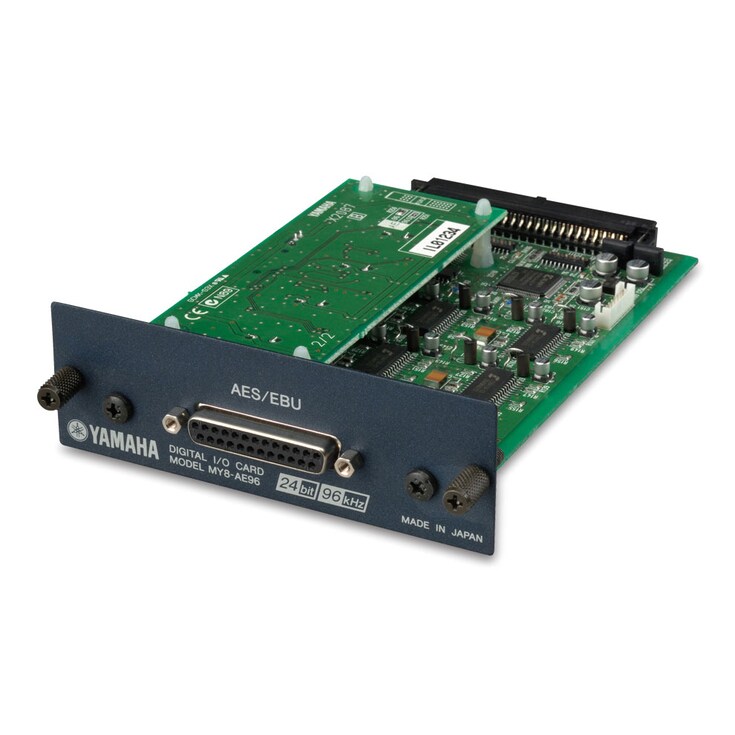

MY8-AE96AES/EBU

Scheda I/O AES/EBU a 8 canali compatibile 96 kHz

24bit resolution, 96kHz compatible 8-in/8-out AES/EBU interface
1x D-sub 25 pin connector

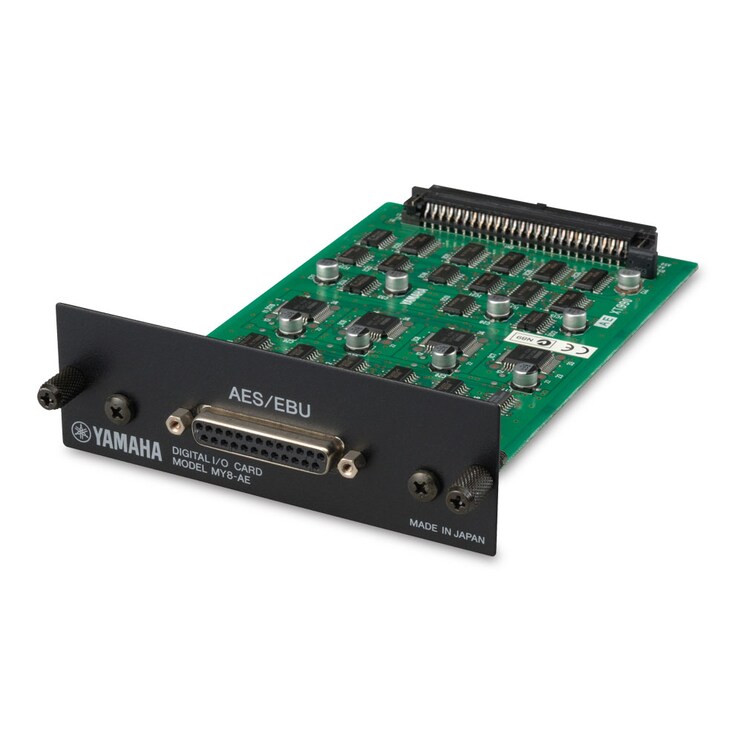

MY8-AEAES/EBU

Scheda I/O AES/EBU a 8 canali

24bit resolution, 8-in/8-out AES/EBU interface (4-in/4-out at 96kHz)
1x D-sub 25 pin connector

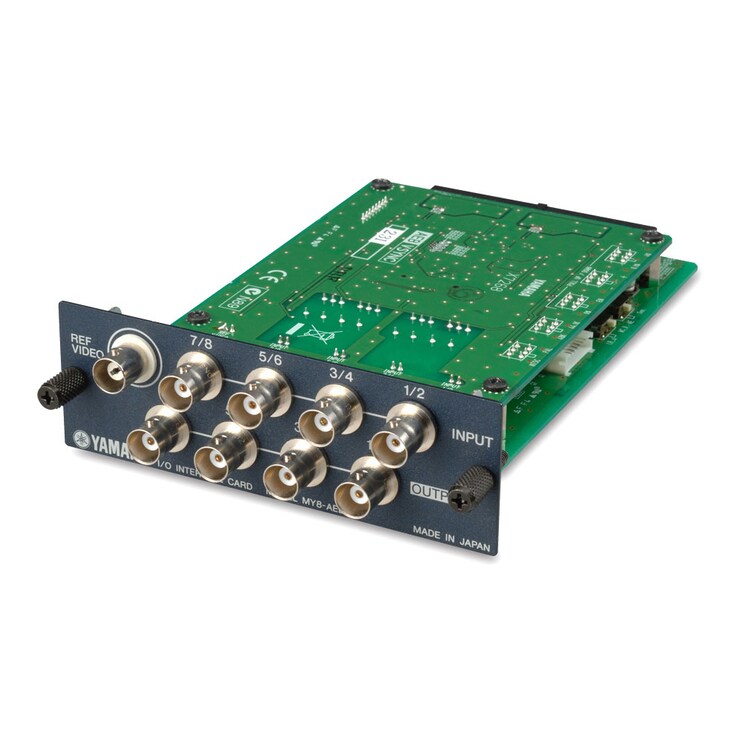

MY8-AEBAES/EBU

Scheda I/O AES/EBU a 8 canali con input video REF

24bit resolution, 8-in/8-out AES/EBU interface
9x BNC connetors: 4x IN, 4x OUT, 1x Reference video input
"eXi-Clock" synchronization maintenance function

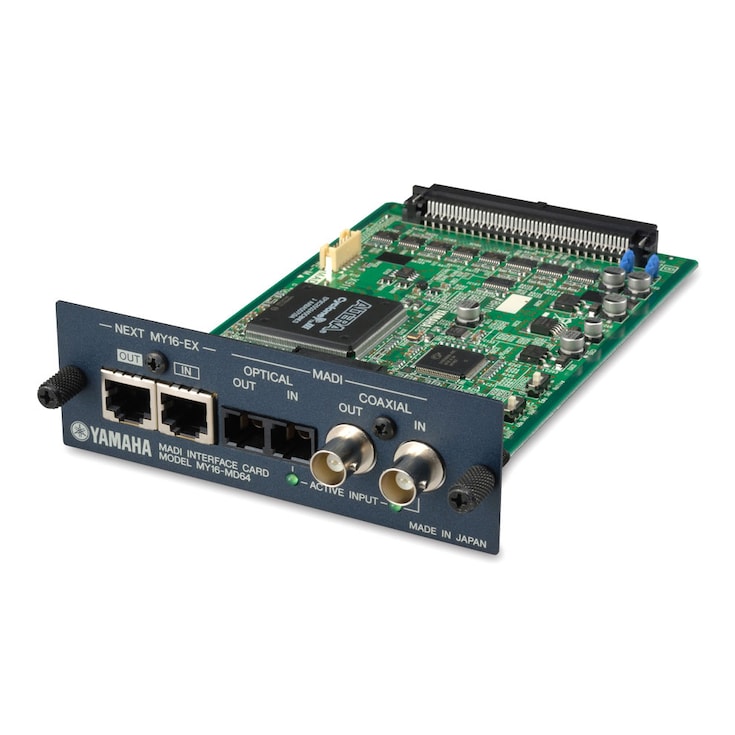

MY16-MD64MADI

Scheda interfaccia MADI a 16 canali

24bit resolution, 16-in/16-out MADI interface
Expandable to up to 64-in/64-out with MY16-EX expansion cards
2x BNC connectors and 2x Optical connectors for MADI I/O, 2x RJ45 connectors for MY16-EX connection

MY16-EXEspansione I/O

Scheda di espansione I/O a 16 canali EtherSound/MADI

24bit resolution, 16-in/16-out expansion card for MY16-ES64 and MY16-MD64
4x RJ-45 connectors

MY8-SDI-EDSDI

Scheda interfaccia 8 canali HD-SDI/SD-SDI Embedder/De-embedder

4x BNC connectors: 1x HD-/SD-SDI input, 2x HD-/SD-SDI output (same signal), 1x HD-/SD-SDI thru output (relocked)
Can de-embed up to two of the 4 audio groups (4 channels per group: total 8 channels) embedded in a HD-SDI signal
Can embed 2 audio groups into an HD-/SD-SDI signal for output
LED audio status display

MY16-TDTDIF

Discontinuo

Schede di espansione della serie MY (Mini-YGDAI) da utilizzare negli slot di I/O opzionali di mixer digitali e motori di missaggio. Disponibili anche schede di altri fornitori.

24bit resolution, 16-in/16-out TDIF-1 (TASCAM) interface (8-in/8-out at 96kHz)
2x D-sub 25 pin connectors

MY8-TDTDIF

Discontinuo

Schede di espansione della serie MY (Mini-YGDAI) da utilizzare negli slot di I/O opzionali di mixer digitali e motori di missaggio. Disponibili anche schede di altri fornitori.

24bit resolution, 8-in/8-out TDIF-1 (TASCAM) interface (4-in/4-out at 96kHz)
1x D-sub 25 pin connector for digital audio, 1x BNC connector for Word Clock out
