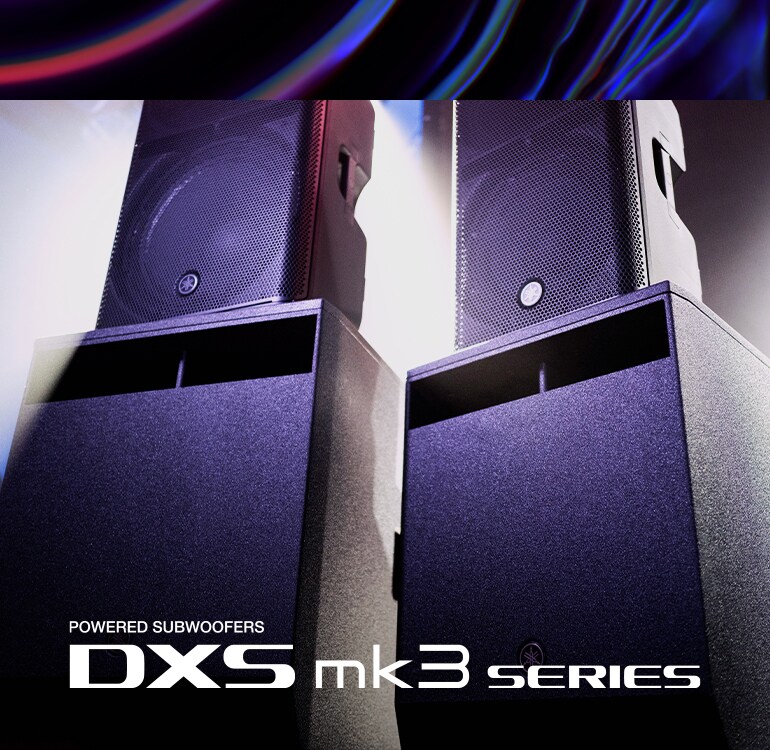

Yamaha Powered Subwoofers DXS mk3 Series

Lineup

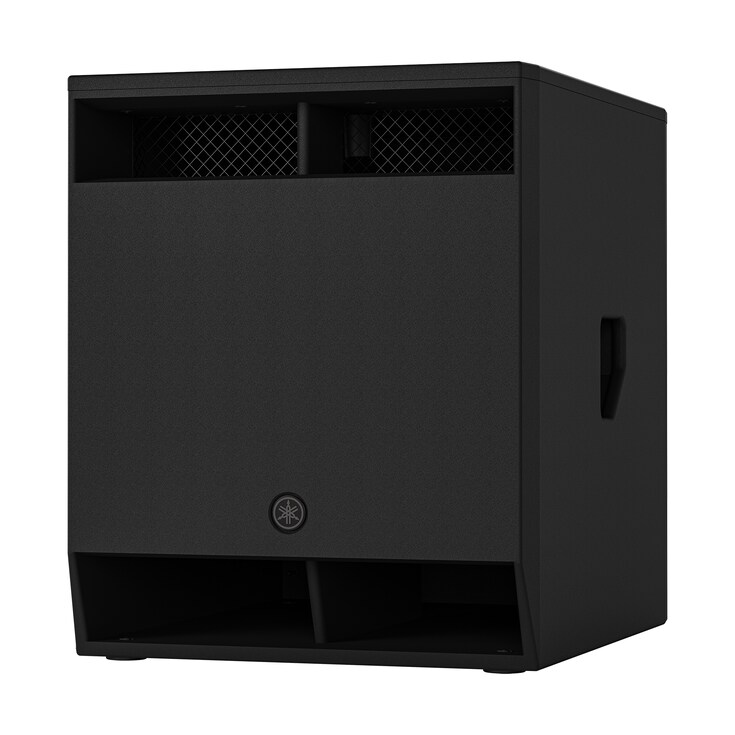

DXS18 mk3Powered Subwoofer

Nuovo

The DXS18 mk3 is the largest model of Yamaha’s latest generation of DXS series powered subwoofers. The new model delivers deep, clear, and remarkably powerful, ultra-low bass thanks to our proprietary high-durability transducers, redesigned high-efficiency power amplifiers, and an ideal bandpass structure that eliminates unwanted cabinet noise. When paired with our perfectly matched DXR mk3 series loudspeakers in particular, the DXS18 mk3 enables users to build a seamlessly integrated sound system with unparalleled impact.

18" Cone, 4" Voice coil proprietary high-durability speaker unit
Newly developed 2500 W Class-D amplifier
High-output woofer with an ideal bandpass cabinet design for superior bass response, delivering a maximum 134 dB SPL
Built-in D-XSUB processing allows you to extend the frequency response even lower, up to 32 Hz
Extremely flexible X-OVER settings with DSP
Cardioid mode for bass management onstage
Plywood cabinet is durable and acoustically optimized for maximum sound quality
M20 and Ø35 mm dual pole sockets

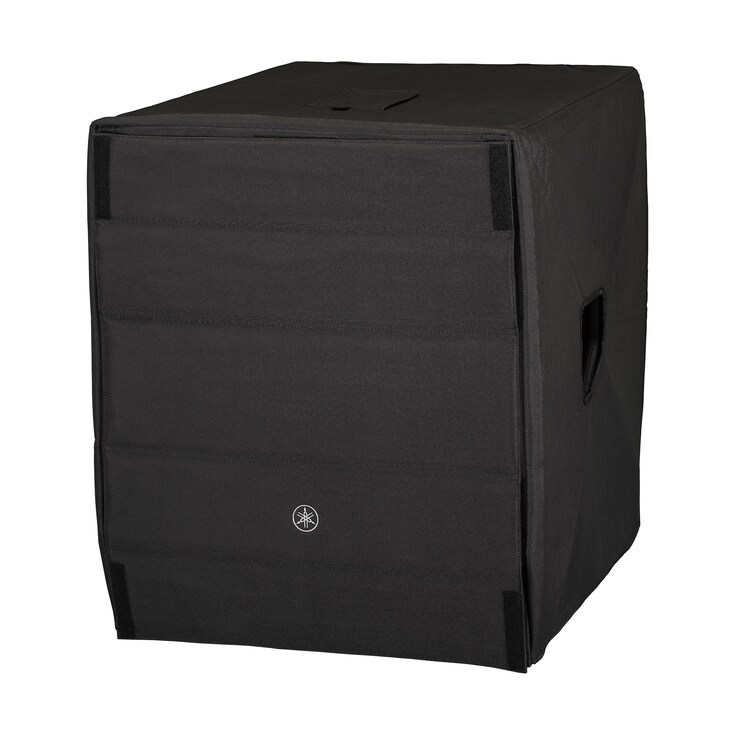

Optional Speaker Wheels (SPW-1) and Speaker Cover (SPCVR-DXS183)

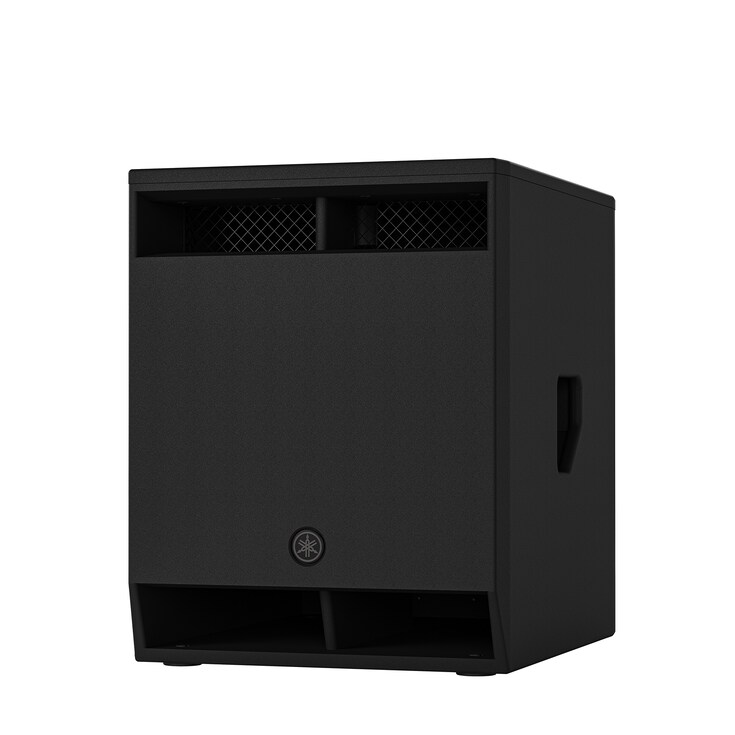

DXS15 mk3Powered Subwoofer

Nuovo

The DXS15 mk3 is the mid-size version of Yamaha’s latest generation of DXS series powered subwoofers. The new model delivers deep, clear, and remarkably powerful, ultra-low bass thanks to our proprietary high-durability transducers, redesigned high-efficiency power amplifiers, and an ideal bandpass structure that eliminates unwanted cabinet noise. When paired with our perfectly matched DXR mk3 series loudspeakers in particular, the DXS15 mk3 enables users to build a seamlessly integrated sound system with unparalleled impact.

15" Cone, 3" Voice coil proprietary high-durability speaker unit
Newly developed 2500 W Class-D amplifier
High-output woofer with an ideal bandpass cabinet design for superior bass response, delivering a maximum 133 dB SPL
Built-in D-XSUB processing allows you to extend the frequency response even lower, up to 35 Hz
Extremely flexible X-OVER settings with DSP
Cardioid mode for bass management onstage
Plywood cabinet is durable and acoustically optimized for maximum sound quality
M20 and Ø35 mm dual pole sockets

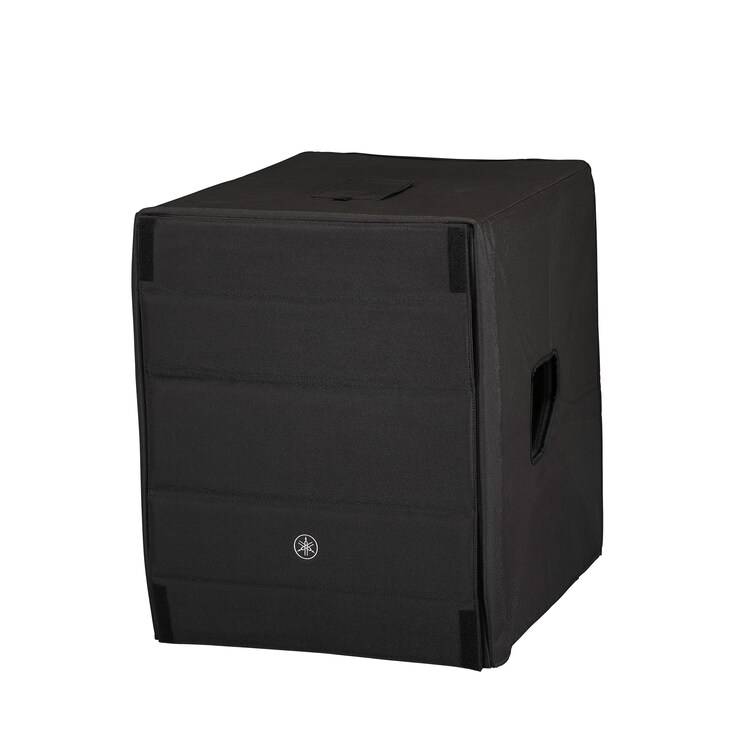

Optional Speaker Wheels (SPW-1) and Speaker Cover (SPCVR-DXS153)

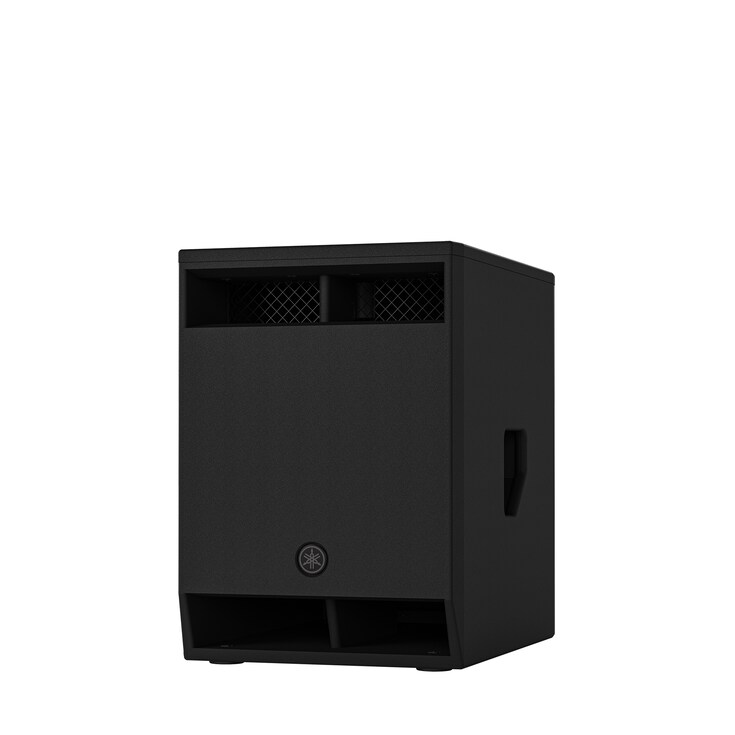

DXS12 mk3Powered Subwoofer

Nuovo

The DXS12 mk3 is most portable version of Yamaha’s latest generation of DXS series powered subwoofers. The new model is capable of delivering deep, clear, and remarkably powerful, ultra-low bass that belies it’s compact size thanks to our proprietary high-durability transducers, redesigned high-efficiency power amplifiers, and an ideal bandpass structure that eliminates unwanted cabinet noise. When paired with our perfectly matched DXR mk3 series loudspeakers in particular, the DXS12 mk3 enables users to build a seamlessly integrated sound system with unparalleled impact.

12" Cone, 3" Voice coil proprietary high-durability speaker unit
Newly developed 2500 W Class-D amplifier
High-output woofer with an ideal bandpass cabinet design for superior bass response, delivering a maximum 132 dB SPL
Built-in D-XSUB processing allows you to extend the frequency response even lower, up to 38 Hz
Extremely flexible X-OVER settings with DSP
Cardioid mode for bass management onstage
Plywood cabinet is durable and acoustically optimized for maximum sound quality
M20 and Ø35 mm dual pole sockets

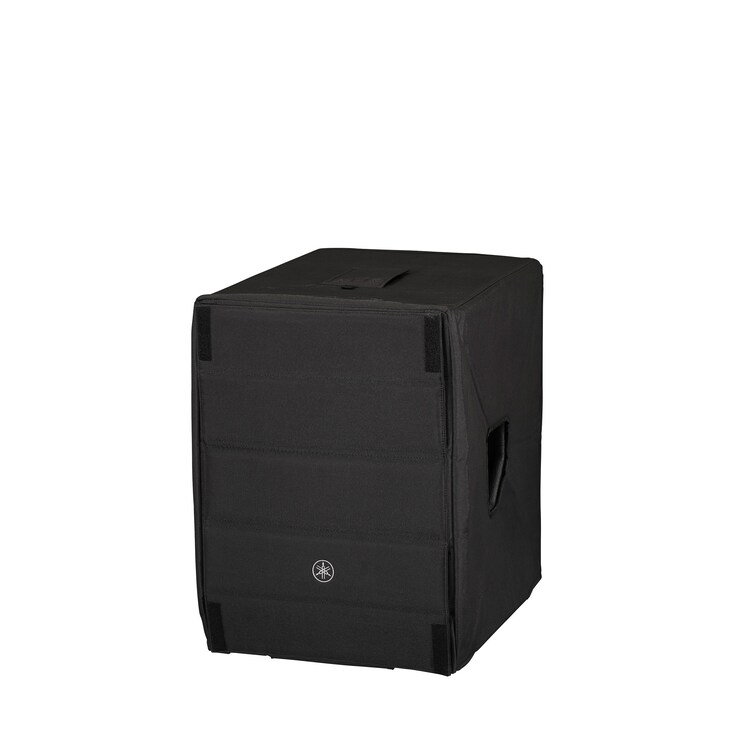

Optional Speaker Wheels (SPW-1) and Speaker Cover (SPCVR-DXS123)

Caratteristiche

Sound Changes Everything

From an immersive, frenzied set that puts a DJ on the map, to a killer live band showcase with career-defining implications—countless variables, and often pure luck, can factor in to pulling off a memorable, even life-altering performance. Some you can control, others you cannot, but DXS mk3 subwoofers take luck out of the equation when it comes to your bass sound, offering significant improvements in performance, flexibility, and reliability from its renowned predecessor. From the functional, lightweight, yet highly durable cabinet design, to flexible, high-performance DSP features with crucial real-world applications, the DXS mk3 will reliably deliver your bass with serious power and startling precision, ensuring that you’ll never have to question if your bottom end performance can rise to the occasion when you need it most.

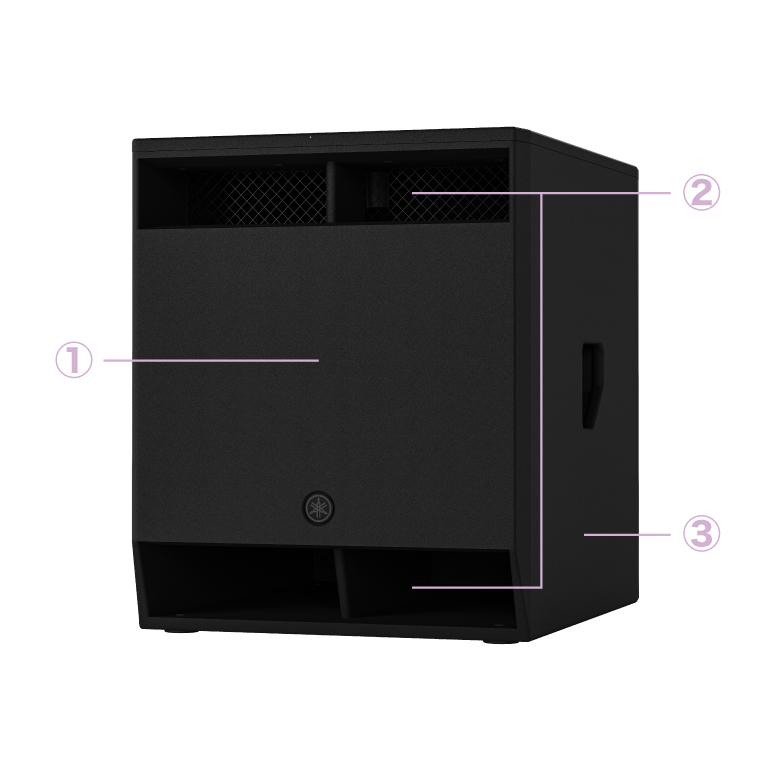

Acoustic design that delivers consistently linear VLF performance

1 - Yamaha Proprietary Long-Excursion & High-Durability Speaker Units

2 - Ideal Bandpass Structure

3 - High-Performance Plywood Cabinet with Durable Polyurea Coating

Acoustic design that delivers consistently linear VLF performance

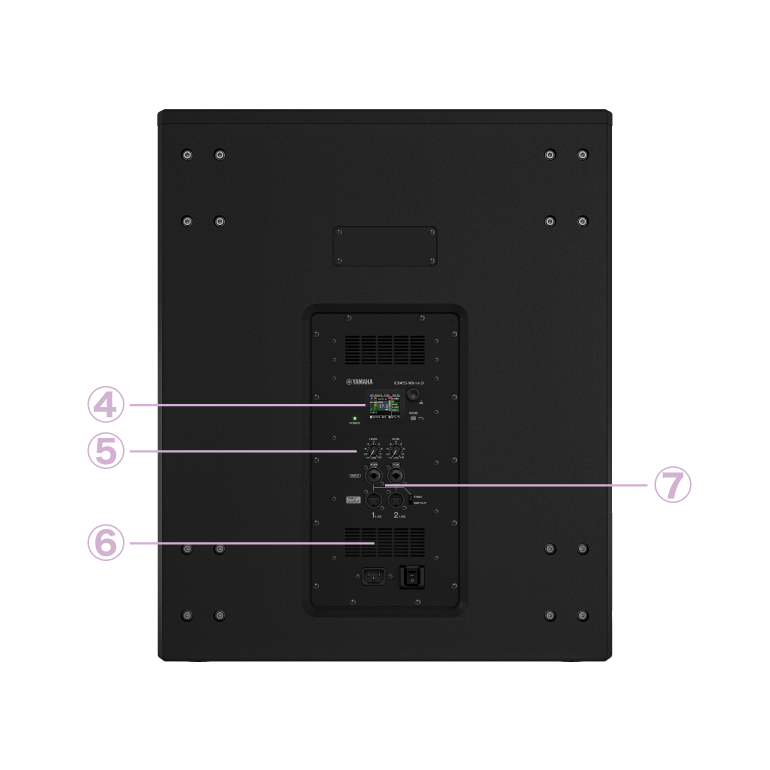

Power and High-Performance DSP that Unlocks True Sonic Potential

4 - Highly Visible, User-Friendly LCD Panel & Encoder

5 - Advanced DSP for Sophisticated Signal Processing

6 - 2500 W Class-D High-Power Amplifier

7 - Comprehensive/versatile inputs routing with Bluetooth® audio

Power and High-Performance DSP that Unlocks True Sonic Potential

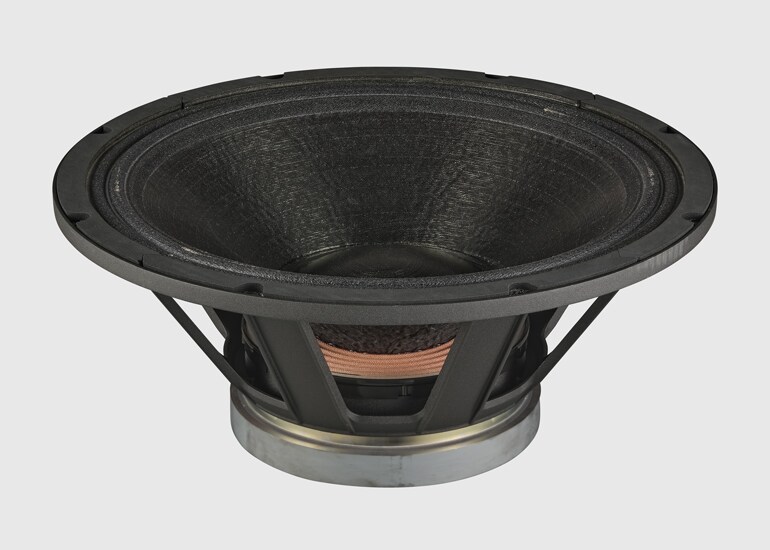

1 - Yamaha Proprietary Long-Excursion & High-Durability Speaker Units

All series models come equipped with Yamaha’s own customized, long-excursion speaker units specifically designed for subwoofers. The 18” model features a 4” voice coil, while the 15” and 12” models employ 3” voice coils, ensuring high durability.

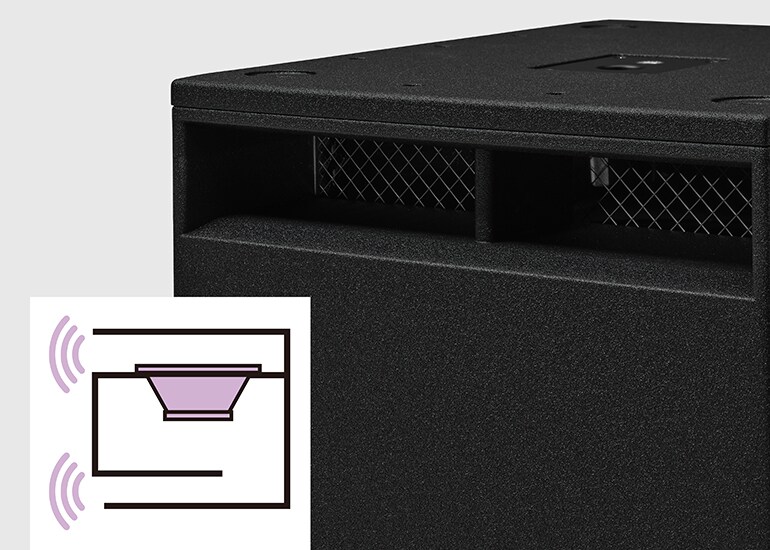

2 - Ideal Bandpass Structure

Series enclosures adopt an ideal bandpass structure, significantly reducing unwanted noise even at high outputs. The combination of large-diameter ports and a wide high-performance grille significantly eliminates wind noise, enabling powerful, clear, and deep sub-bass reproduction.

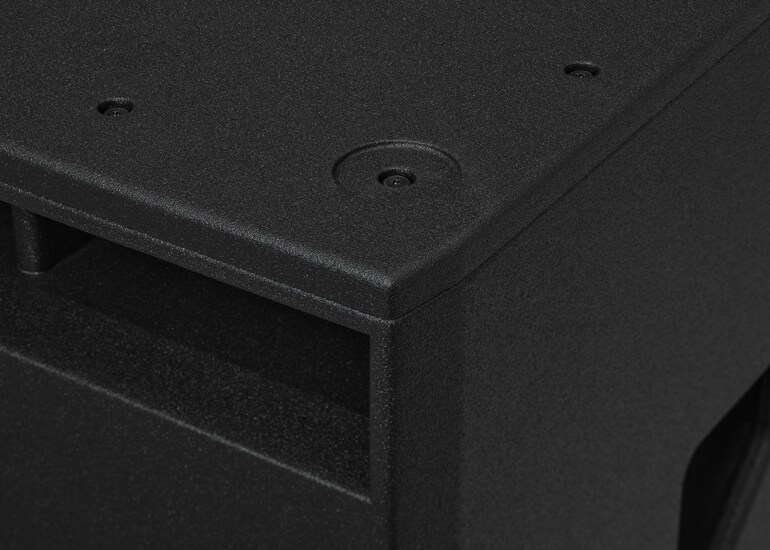

3 - High-Performance Plywood Cabinet with Durable Polyurea Coating

The cabinet exterior employs a robust, scratch-resistant polyurea coating, protecting the enclosure from impacts during transport, installation, and removal. Power and High-Performance DSP That Unlock Performance

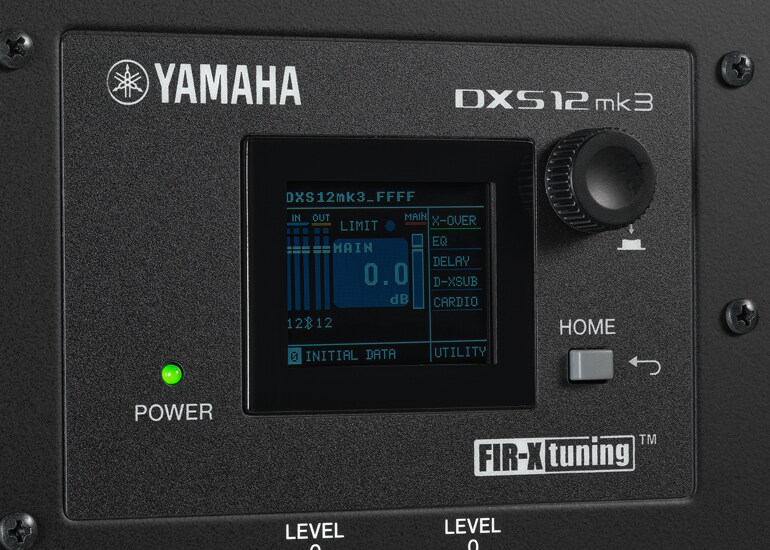

4 - Highly Visible, User-Friendly LCD Panel & Encoder

An LCD panel is mounted on the rear, allowing easy operation of parameters such as preset loading, precise PEQ adjustments, delay, and routing. Up to eight user presets can be stored, and factory presets optimized for combined use with DXRmk3 series loudspeakers can be recalled.

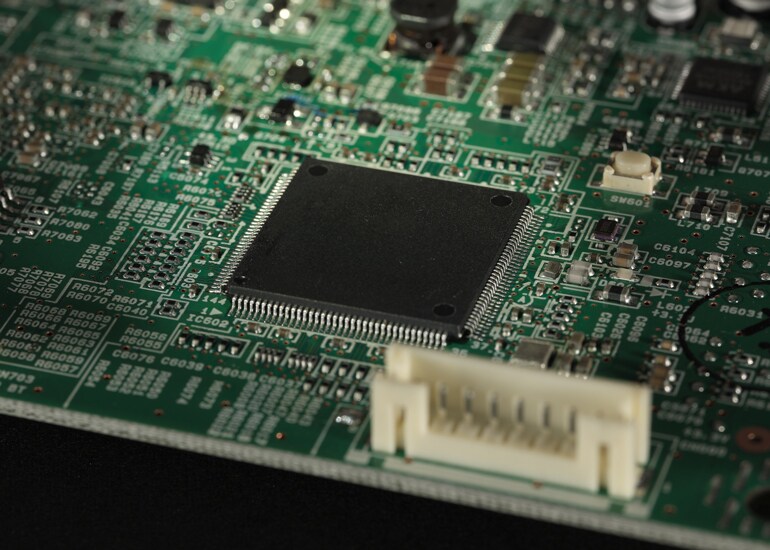

5 - Advanced DSP for Sophisticated Signal Processing

Featuring a 96kHz internal DSP processor, the DXSmk3 series delivers high output performance with exceptional clarity and low latency. It also features an “XTENDED LF” mode for extended low-frequency reproduction.

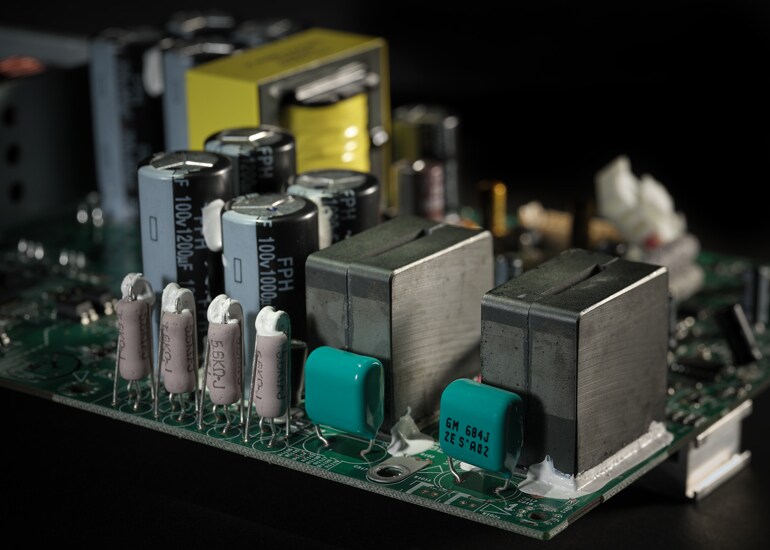

6 - 2500 W Class-D High-Power Amplifier

DXS mk3 Series subwoofers are equipped with a highly efficient 2500 W Class-D high-power amplifier and a newly designed high-efficiency switching power supply ensures smooth and stable operation.

Advanced features that improve the user's workflow

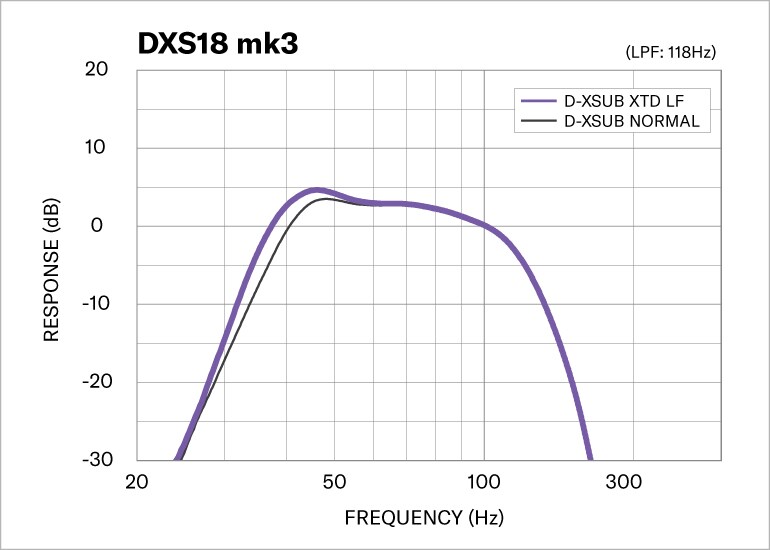

D-XSUB Bass Processing

“D-XSUB” offers DSP presets that allow users to tailor subwoofer characteristics to their specific application. NORMAL mode provides recommended bass balance, while XTENDED LF mode extends the reproduction frequency for genres requiring wider acoustic range, such as classical or orchestral music.

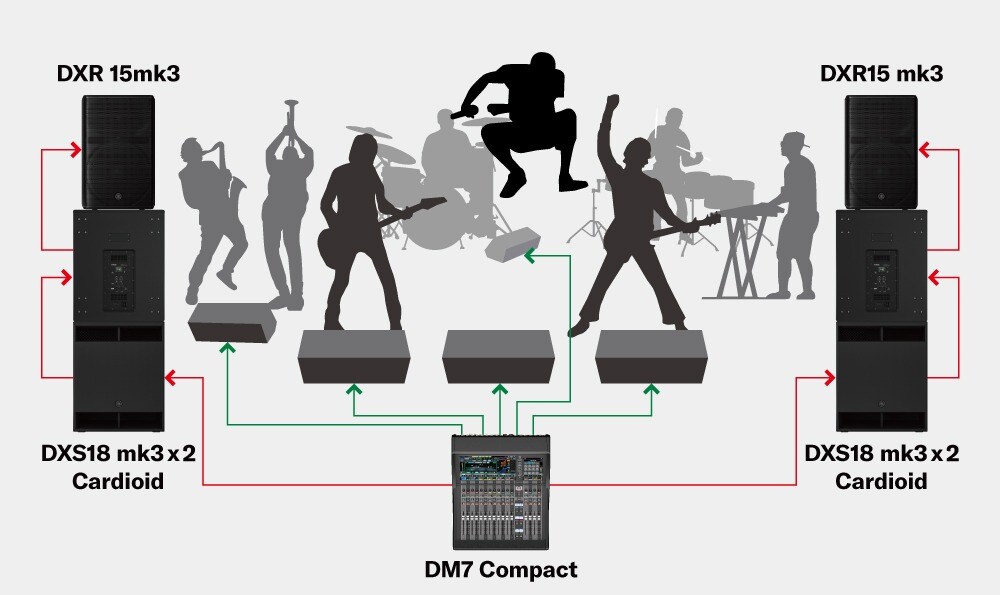

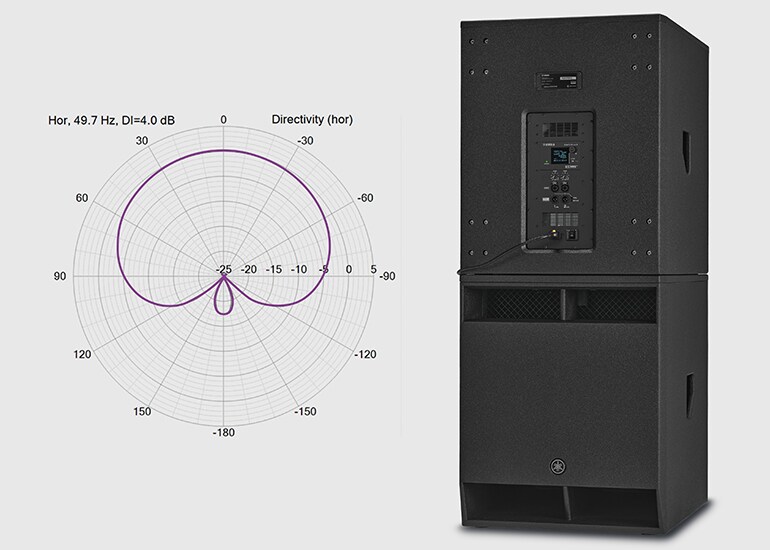

Cardioid Mode

Low frequencies are typically non-directional, resulting in equal sound pressure levels on both audience and stage sides. With two or more DXS mk3 units, the cardioid mode enables more effective bass control by efficiently increasing audience-side output while simultaneously reducing stage-side sound pressure for optimized monitoring performance.

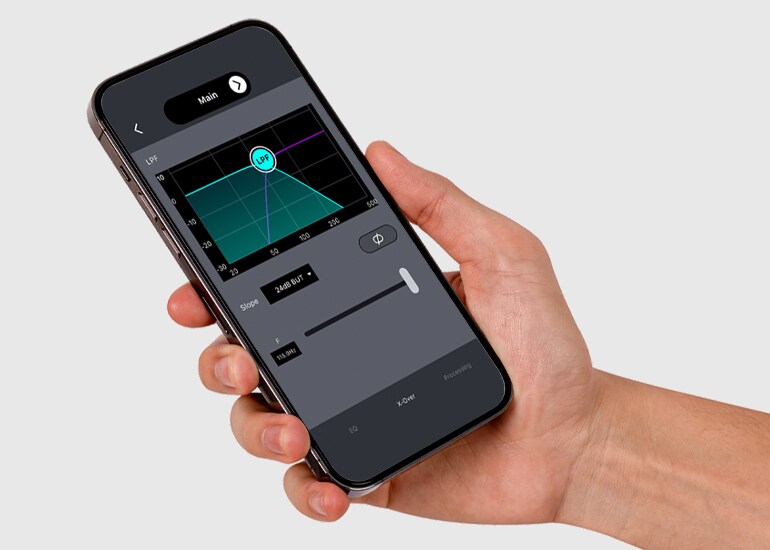

“D-Remote” Control App

“D-Remote” is a dedicated application for remote control of your DXR/DXS mk3 via iOS and Android devices over Bluetooth. It enables control of all parameters, including level, delay, EQ, crossover, FBS, ducker, identification, panel lock, and scene save/recall. Additionally, it monitors speaker limiting and temperature and displays error alerts. Up to ten devices can be connected simultaneously, with grouping available for unified level and mute control.

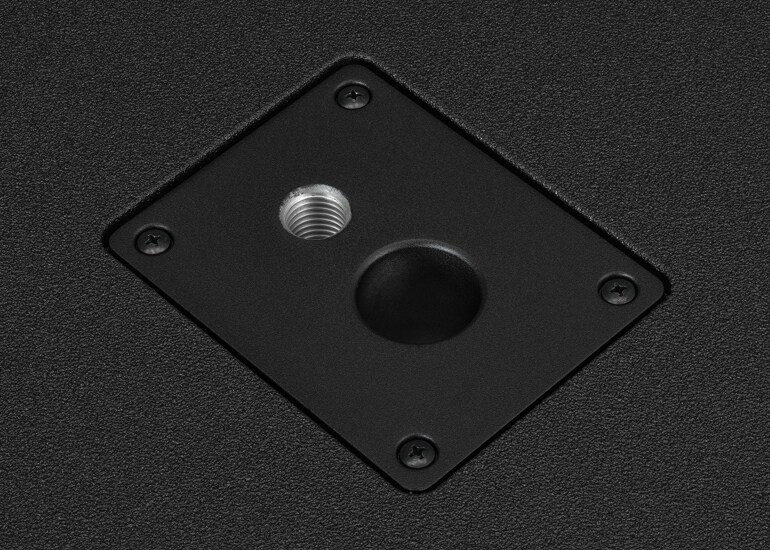

Dual Pole Socket

For enhanced convenience, the DXS/CXS mk3 series is equipped with pole sockets compatible with both 35 mm diameter and M20 threaded speaker poles.

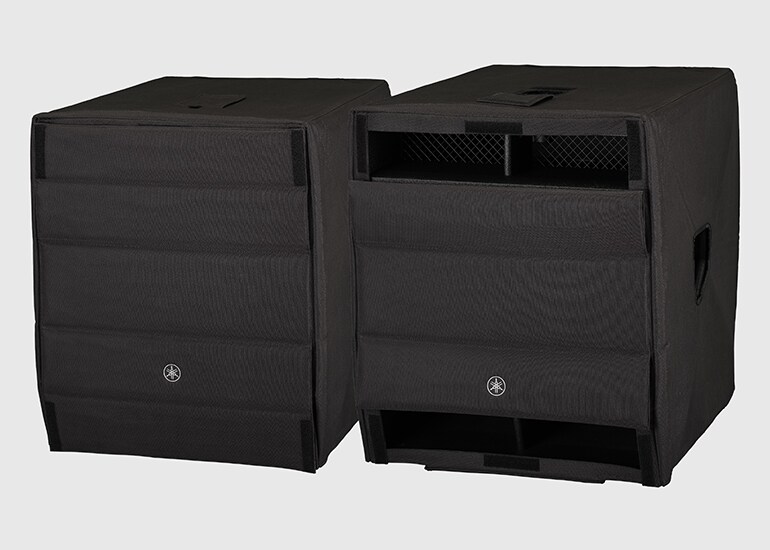

Multi-Function Speaker Covers

Optional speaker covers are available for all models, protecting speakers from scratches, dust, and unexpected weather during transport or storage.

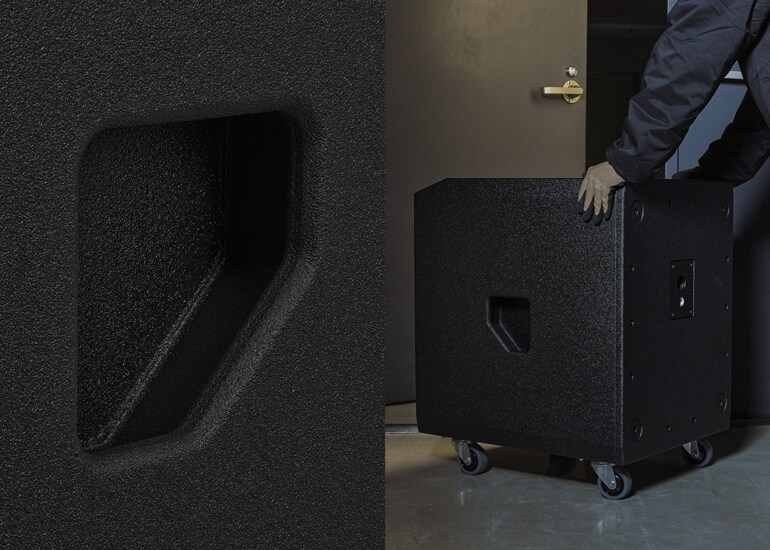

Optional Wheel Kit & 2-Way Handle

All DXS/CXS mk3 models support optional casters with radial ball bearings for vibration-free performance during operation. The two-way handle design ensures comfort during both transport and installation.
