| General |

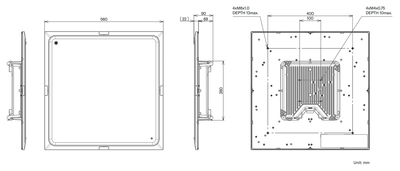

| Dimensions |
W560 mm × D560 mm × H90 mm (Includes protrusion/microphone panel: 22 mm) |
| Peso |
5.6 kg |
| Power Requirements |
PoE (IEEE 802.3af) |
| Maximum Power Consumption |
7.2 W |
| Connector |
RJ45 |
| In Operation |
Temperature |
0°C - 40°C |
| Humidity |
30% - 90% (no condensation) |
| Storage |
Temperature |
-20°C - 60°C |
| Humidity |
20% - 90% (no condensation) |
| Indicator |
Front Indicator (Mute/Unmute & Status), Network Port Indicator |
| Mount |
Ceiling mount, Wire mount, VESA mount |
| Maximum Device Number with RM-CR |
14 (without VXL1-16P, up to 16) |
| Accessories |
Construction description, (Guarantee), Grille x 1, Screws for grille (M3 x 8 mm) x 5*, Screw cover x 4, Cutting template x 1, C ring x 1, Screws for C ring x 2, Hanger angle x 1, Screws for hanger angle (M4 x 20 mm) x 5*, Terminal Cover x 1, Safety wire x 1, Binding band x 1, Clamp plate x 2 *Including a spare respectively |
| Dust Protection |
IP5X for dust protection (with terminal cover) |
| Plenum Rating |
UL2043 (with terminal cover) |
| Network Specifications |
| Ether1 |
Dante, Remote Control, WebUI, PoE |
| Cable Requirements |
Cat 5e or higher (STP) |
| Audio Specifications |
| Audio I/O |
Dante |
1in/2out, In1=AEC reference signal / Out1=output of beam mix, Out2=output of beam mix (simple processed) |
| Sampling Rate |
48 kHz |
| Bit Depth |
24 bit |
| Latency |
58 ms (including signal processing), 22 ms (low-latency mode) |

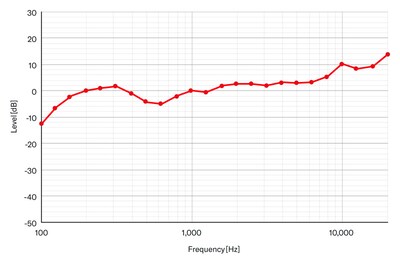

| Frequency Response |
160 Hz – 16 kHz (-10 dB) |
| Maximum Input Level of SPL (0dBFS) |
117.8 dB SPL |
| Self Noise |
-0.8 dBA SPL |
| SN Ratio (Ref. 94 dB SPL at 1 kHz) |
94.8 dBA |
| Sensitivity |
-23.8 dBFS/Pa |
| Dynamic Range |
118.6 dBA |
| Signal Processing |
Multi Beam Tracking, Adaptive Echo Canceler, Noise Reduction, Dereverberation, Auto Mixer, Auto Gain Control, Parametric EQ, Output Gain Adjustment |
