System Examples: Live Sound
Simple, flexible setup in any venue.
A Simple Daisy-chain System
Internal port switches allow the CL consoles to be easily set up for daisy-chain or star network configurations. In this example the Console at FOH position is directly connected to the I/O rack at the side of the stage. The network is self-configured. Of course the CL StageMix iPad app can be used even in simple systems like this one, and Dante Virtual Soundcard can be used to enable multitrack recording to a DAW such as Steinberg’s Nuendo.
A Flexible, Redundant Star Network
Star topologies can be configured with gigabit network switches. In this configuration, redundant connections to each device on the network ensure that a malfunction in one cable or network device will not disrupt the entire system. The Gain Compensation feature allows multiple consoles to control analog gain for a single I/O rack, for seamless integration of FOH and monitor operation. Multiple computers can be used for live recording, too.
* CL firmware V1.5 or later is required for Ri8-D analog gain control.
System Examples: Halls and Theaters
Versatility and reliability for a wide range of applications.
NEXO NXAMP Integration
Install the NXDT104 Dante Network Card in a NEXO NXAMP and it becomes possible to communicate with CL series consoles. In addition to basic audio transmission via the Dante network, NXAMP discovery and patching can be controlled from the CL console touch display. You have Dante networking from input to output, plus significantly enhanced overall operability.
* CL firmware V1.5 or later is required for Ri8-D analog gain control and NXAMP discovery and patching.
Live Sound Plus Production Capability
A Nuage Advanced Production System can be merged into a live sound system based on CL Series consoles and Rio Series I/O units via Dante. This makes it possible to provide a fully integrated network audio system that can handle both live sound and production in halls or theaters that have on-site recording rooms, for example. Since automatic gain compensation can be applied when Rio Series I/O units are used with CL Series consoles, analog gain adjustments in multiple CL consoles connected to a common Rio unit will not cause unwanted changes in overall level.
* CL firmware V1.5 or later is required for Ri8-D analog gain control.
System Examples: Broadcast
Broadcast applications demand a great deal of the equipment used in terms of features, adaptability, sound, and reliability.
Un RMio64-D viene usato per supportare un segnale MADI per un OB van.
I sistemi audio live includono un mixer CL di fronte al palco e un mixer QL a lato del palco. Oltre a provvedere al mix dei monitor, la funzione Port to Port del mixer QL sul palco gli permette di funzionare come uno strumento I/O con capacità rapportabili a un'unità rack della serie R, riducendo la complessità e le dimensioni del sistema.
Il RMio64-D converte il segnale di sistema Dante in un MADI per la trasmissione a un OB van esterno alla venue. Il convertitore di sample rate all'interno del RMio64-D risolve efficacemente i problemi di sincronizzazione world clock.

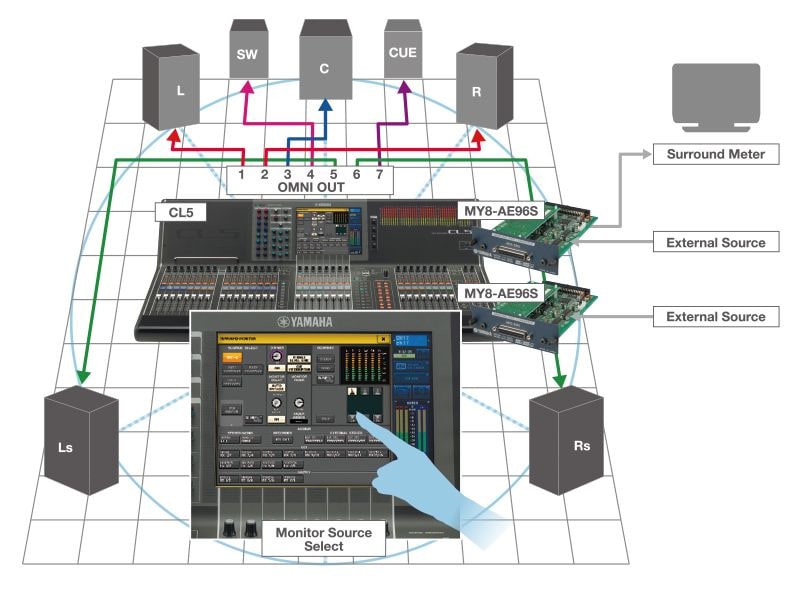

La versione 3.0 di una console CL o QL in un sistema di monitoraggio surround
I collegamenti degli altoparlanti di monitor surround e degli altoparlanti dedicati al monitor del segnale sono fatti tramite i connettori OMNI OUT della console o uno slot di espansione Mini-YGDAI.
Le fonti esterne di surround sono inviate alla console tramite uno slot di espansione Mini-YGDAI in modo da poterle monitorare e cambiare attraverso la console. I segnali di surround possono anche essere inviati a un misuratore esterno tramite uno slot Mini-YGDAI.
